Solar PV labels
Solar labels, engraved for Ontario installs
Lamacoid (lamicoid) plates for solar PV systems: white text on red, engraved in Ingersoll, Ontario and shipped to your job. Buy a fixed-price kit or build your own set.
How it works
From your install to your door
- Send the installUpload your single-line diagram or type in the system details (array, inverter, battery, utility) on the quote form.
- Fast proofProof sent fast. Approve it by 3 pm ET and it ships as quick as the next business day. No rush fee.
- Engraved, not printedThe laser cuts through the red top layer to the white core of 1.6 mm premium laminate. There is no ink to fade, and the maker rates the material for outdoor use.
- Ships ready to mount3M #9502 adhesive backing or pre-drilled mounting holes are included, and plates arrive bagged and labelled.
ESA solar label kits
Solar label kits at fixed prices
Everything for a typical install in one order: engraved plates in white text on red, 1.6 mm premium material (other colours on request), mounting holes and 3M #9502 adhesive included.
New Brunswick and Nova Scotia Complete Solar Install Package
$325 + HST 26 lamacoids, shipping separate
26 lamacoids (24 plates plus 2 logo lamacoids), 406.5 in² (2623 cm²) in total — white text on red, 1.6 mm premium material. Shipping is separate.
- 2 × Single line diagrams
- Solar PV rapid shutdown, DG and Main DG disconnects
- 5 × Electric shock hazard
- AC / DC power, AC / DC disconnect, dual power supply, solar only, do not relocate
- MAIN and voltage / amps plates
- 2 × Logo lamacoids
5+ kits
Volume pricing
Installing for a season or a fleet of jobs? Ask for volume pricing on 5 or more kits.
Contact usPrices in CAD, before HST. The New Brunswick and Nova Scotia package is $325 + HST, shipping separate. Shipping: Pickup at 201 Bell St, Ingersoll ON N5C 2P2, or flat $30 shipping. No rush fees.
New Brunswick & Nova Scotia

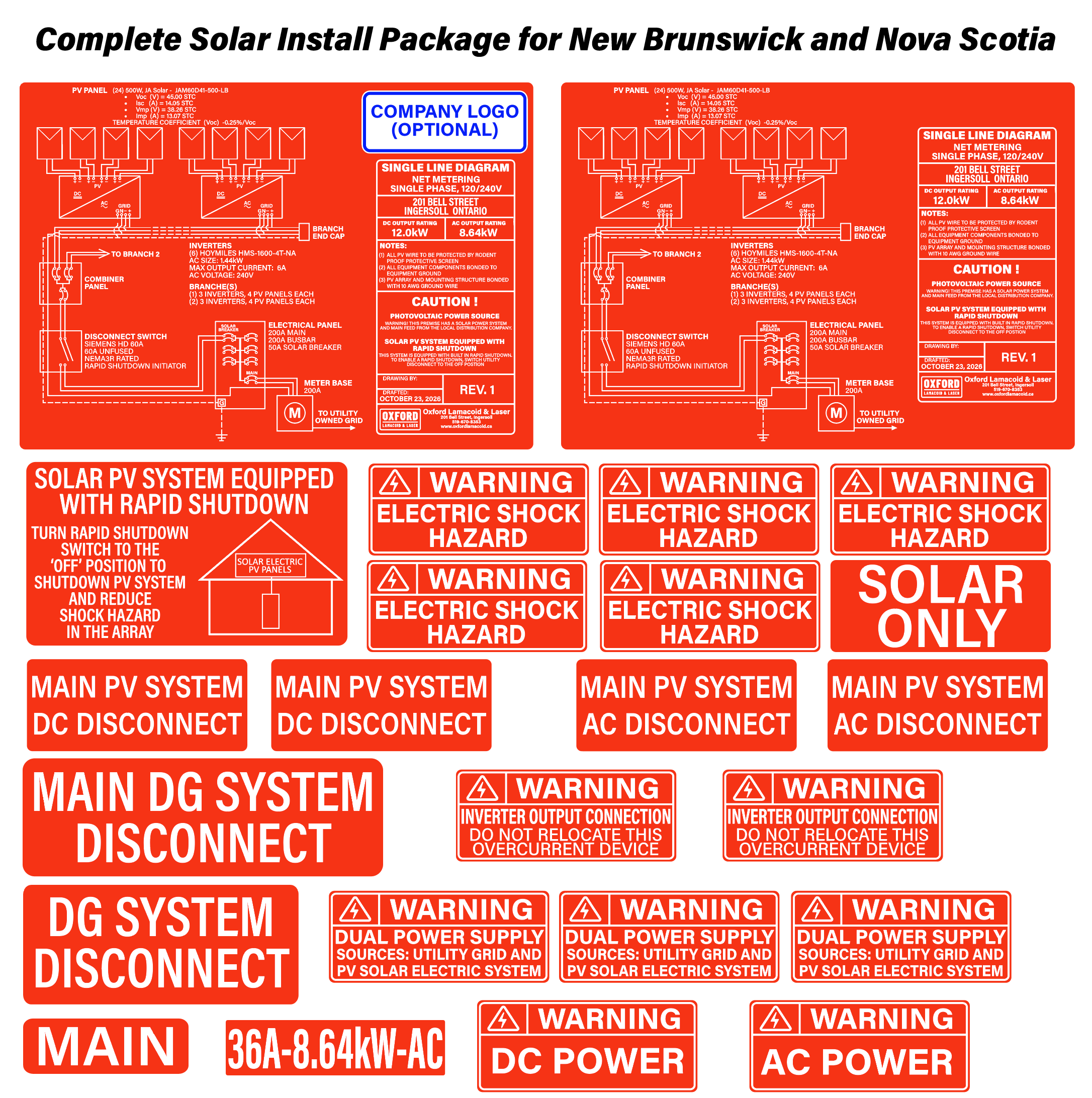

New Brunswick and Nova Scotia Complete Solar Install Package
A complete set for a solar install in New Brunswick or Nova Scotia: 26 lamacoids (24 plates plus 2 logo lamacoids), white text on red, 1.6 mm premium material, with mounting holes and 3M #9502 adhesive. 406.5 in² (2623 cm²) of engraved laminate in total.
Atlantic solar kit (NB & NS)
$325 + HST 26 lamacoids, shipping separate
Shipping is separate ($30 flat). Wording is prepared from the system details you send, and you approve a proof before anything is engraved.
| Qty | Plate | Size each (inches, cm² in brackets) |
|---|---|---|
| 2 | Single line diagram | 87 in² (561 cm²) |
| 1 | Solar PV system equipped with rapid shutdown | 27 in² (174 cm²) |
| 1 | DG system disconnect | 15 in² (97 cm²) |
| 1 | Main DG system disconnect | 20 in² (129 cm²) |
| 5 | Warning – electric shock hazard | 9 in² (58 cm²) |
| 1 | Warning – AC power | 9 in² (58 cm²) |
| 1 | Warning – DC power | 9 in² (58 cm²) |
| 2 | Main PV system AC disconnect | 9 in² (58 cm²) |
| 2 | Main PV system DC disconnect | 9 in² (58 cm²) |
| 3 | Warning – dual power supply | 9 in² (58 cm²) |
| 1 | Solar only | 9 in² (58 cm²) |
| 2 | Warning – inverter output connection, do not relocate this overcurrent device | 9 in² (58 cm²) |
| 1 | MAIN | 4 in² (26 cm²) |
| 1 | Voltage / amps (36A-8.64kW-AC) | 5.5 in² (35 cm²) |
| 2 | Logo lamacoid | 4 in² (26 cm²) |
| 26 | Total | 406.5 in² (2623 cm²) |
Kit wording is prepared from the system details you send, and you approve a proof before anything is engraved. We make labels. You stay responsible for what your inspector and utility require, and we don't certify or inspect installations.
Ontario guidance
Built around Ontario rules
Kit wording is designed to match the marking items inspectors commonly check, from the system details you send. You stay responsible for the installation and for what your inspector and utility require. We make labels. We don't certify or inspect installations.
What ESA says about solar labels
ESA Bulletin 64-5-4, Installation of solar photovoltaic systems (issued May 2025), says Rules 2-100 and 84-024 require the labels, but the rules do not specify the wording. So use the wording from your drawings, your utility (LDC) or your inspector.
For the exterior, weatherproof labels that Section 84 calls for, the same bulletin says:
“The Code does not provide specific requirements; the labels need to be able to withstand the elements, be permanent and legible, for example: lamacoid, engraved metal plate, or equivalent. Additionally, the label has to satisfy the local supply authority requirements.”
Engraved laminate is one of the examples the bulletin gives. Read the ESA bulletin (PDF).
Kit wording is prepared to suit ESA Bulletin 64-5-4, the Canadian Electrical Code as adopted in Ontario, and your local utility's requirements, based on the system details you send — and you approve a proof before anything is engraved. Final acceptance is up to your inspector and utility, so we don't promise guaranteed compliance. This page is general information, not code advice. Bulletins are updated, so check the current version and confirm requirements with your inspector.
Build your own
Build the whole kit yourself
Lay out single plates in the online designer with a to-scale preview and a live price, then send the set to us for a proof. Single plates are priced by label size (from $5.00 each, $4.00 each at 10 or more small labels; see the rate card). The fixed-price kits are usually the better deal for a full set.
Quote
Not sure what you need?
Send the single-line diagram, a few lines about the system, or last year's label list. We will tell you which kit fits and what to add. You can also call 519-670-8353, Monday to Friday, 9 am to 5 pm ET.
From the bench

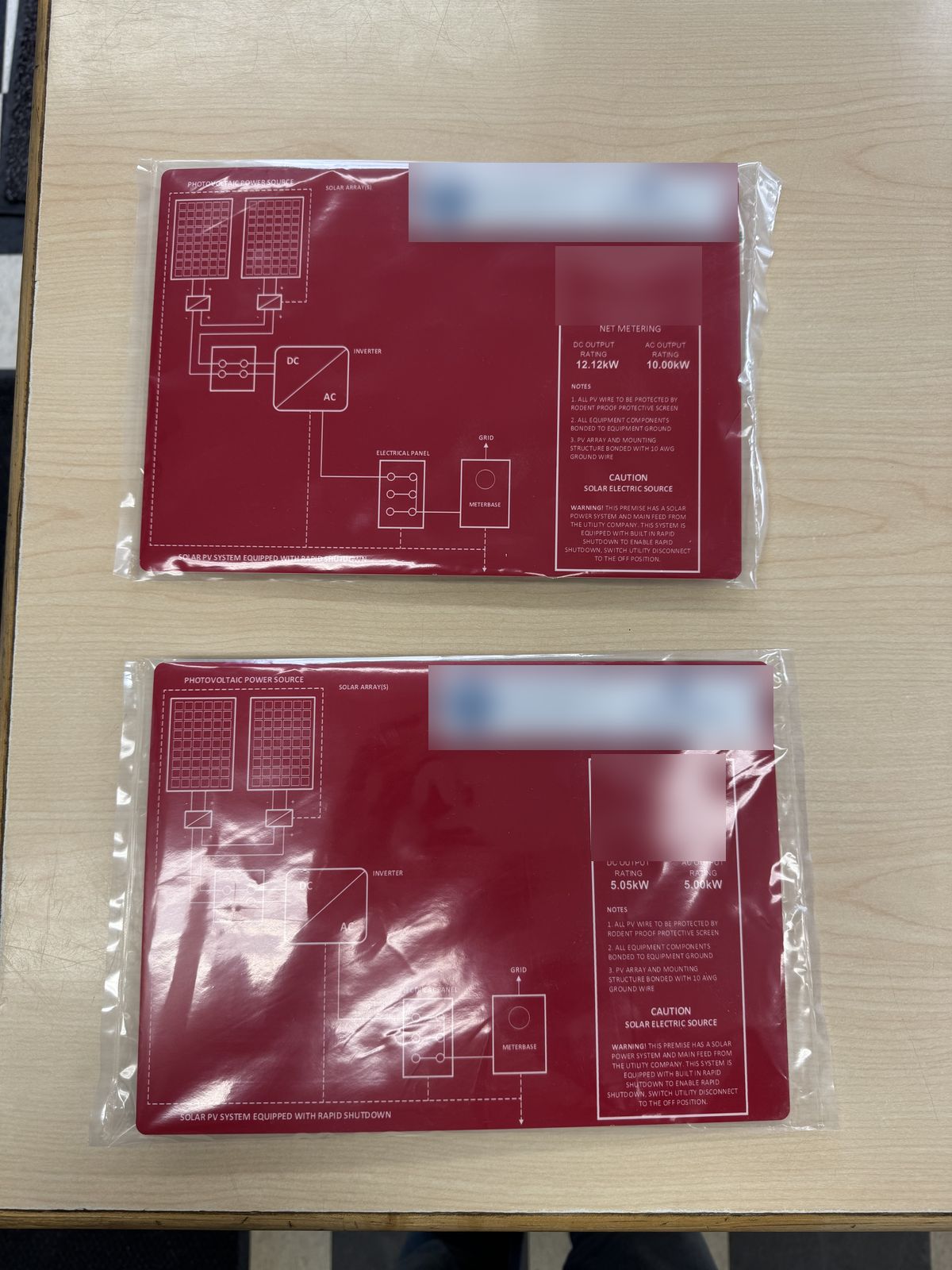

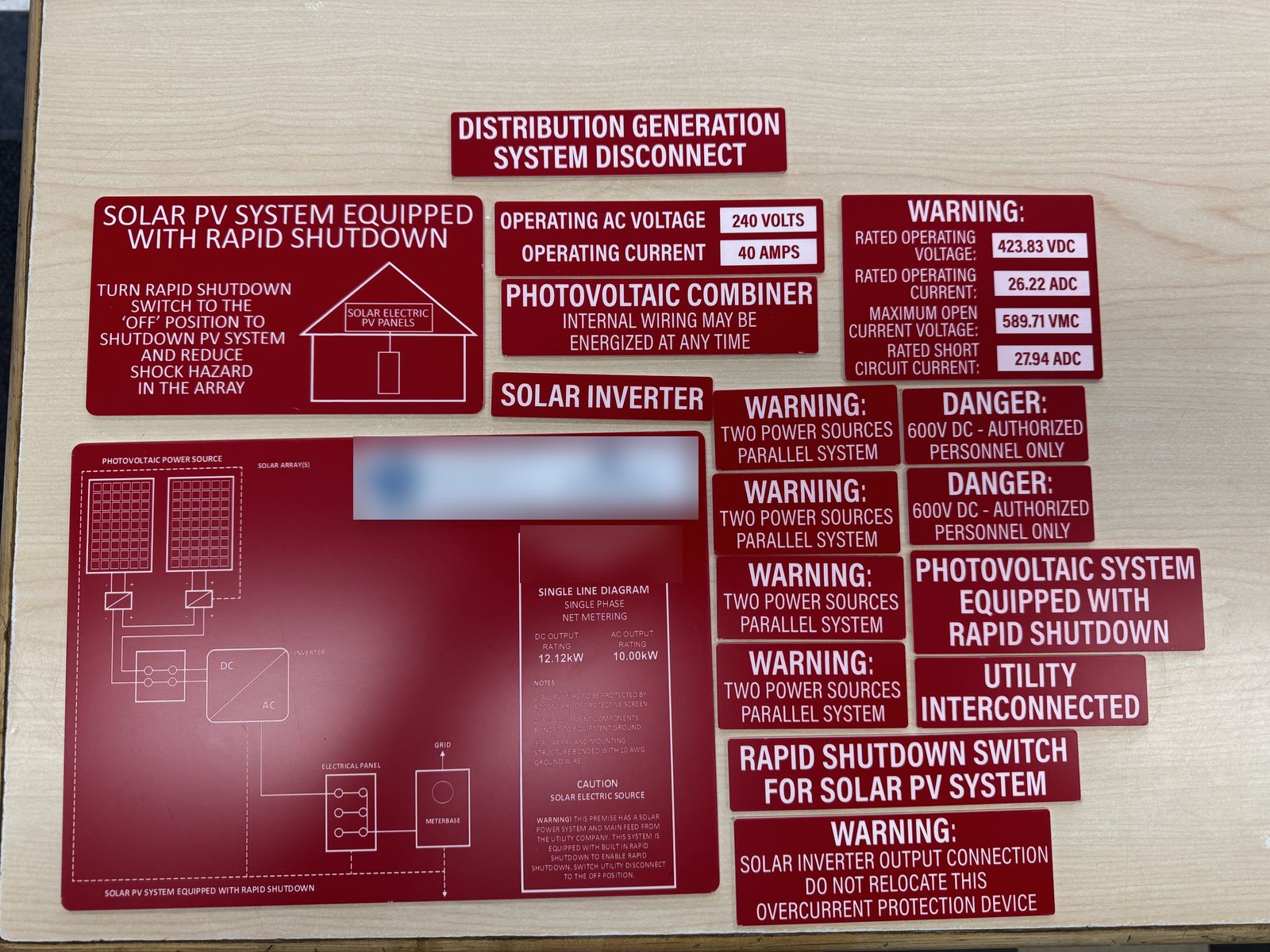

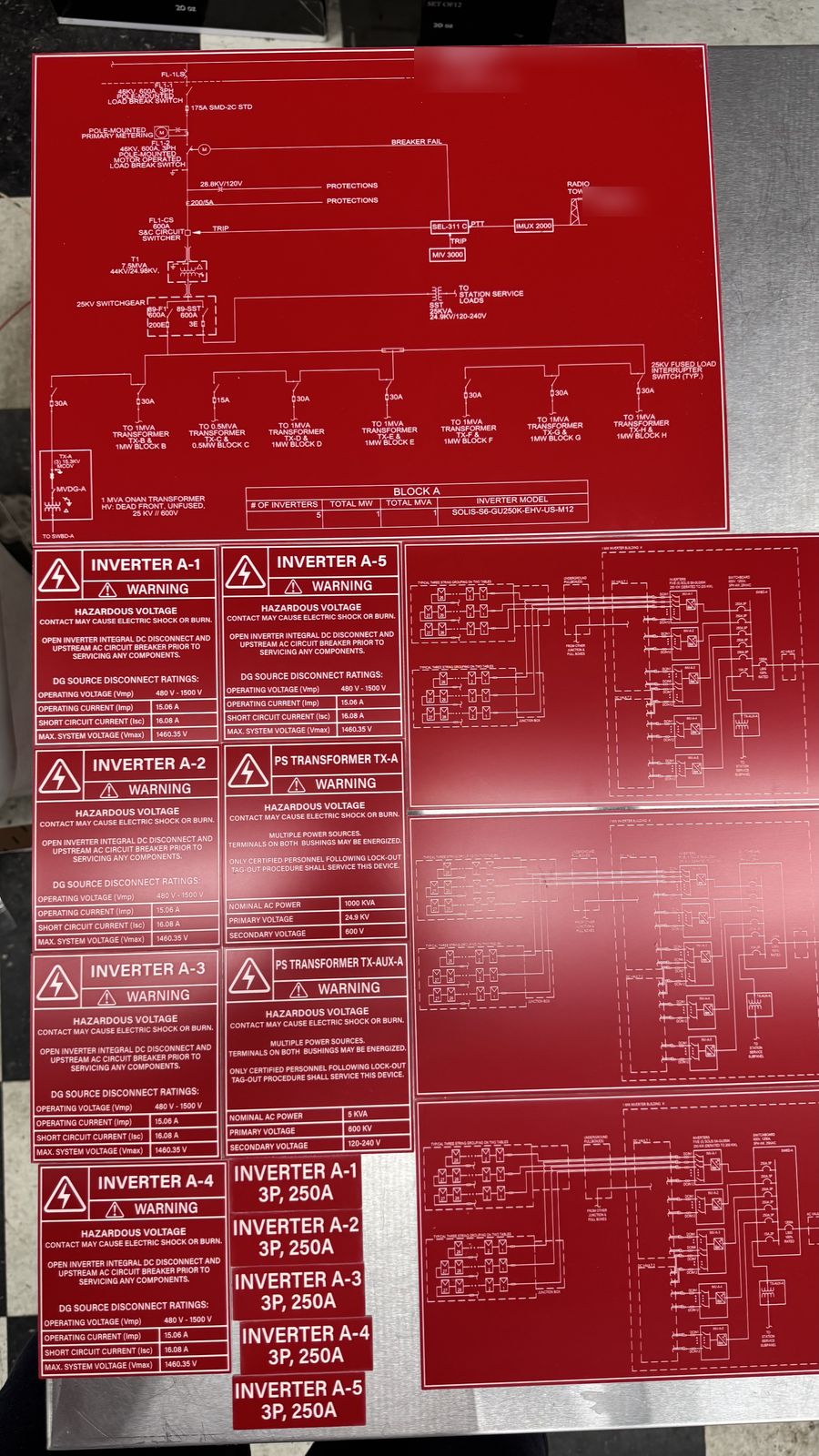

Solar label sets we have engraved
FAQ
Solar label questions
Does Ontario's ESA require lamacoid labels on solar PV systems?
Not by name. ESA Bulletin 64-5-4 (issued May 2025) says, for exterior labels required by Section 84, that labels need to withstand the elements and be permanent and legible — “for example: lamacoid, engraved metal plate, or equivalent” — and must also satisfy the local supply authority (utility) requirements. Lamacoid is an accepted example, not the only option. Always confirm wording and requirements with your inspector and local utility for the specific job.
Do you write the label wording for me?
You supply the wording for your job (from your drawings, utility requirements or your inspector). We'll lay it out, check it for obvious typos and send a proof before we engrave. We don't certify code compliance.
Do your solar label kits guarantee ESA compliance?
Kit wording is prepared to suit ESA Bulletin 64-5-4, the Canadian Electrical Code as adopted in Ontario, and your local utility's requirements, based on the system details you send — and you approve a proof before anything is engraved. Final acceptance is up to your inspector and utility, so we don't promise guaranteed compliance. Rules and utility requirements can change, so always check the current versions for your job.
How much do lamacoids cost and how fast can I get them?
Lamacoids are priced by the size of one label (CAD, before HST), with mounting holes and 3M #9502 adhesive included. Labels up to 6 in² (39 cm²) are $5.00 each, $4.00 each when you order 10 to 24 small labels, and $3.50 each at 25 or more. Larger labels are $0.95 per in² from 6 to 15 in², $0.75 per in² from 15 to 40 in², and $0.60 per in² over 40 in². For example, a 10 in² (65 cm²) label is $9.50, a 24 in² (155 cm²) label is $18.00 and a 70 in² (452 cm²) label is $42.00. Solar label kits are fixed price: New Brunswick and Nova Scotia package is $325 + HST. We send proofs fast and ship as quick as the next business day when you approve by 3 pm ET, with no rush fees. Use the online designer for a live estimate.
How do pickup and shipping work?
Pickup at 201 Bell St, Ingersoll ON N5C 2P2, or flat $30 shipping. No rush fees.
Do you have a solar label kit for New Brunswick and Nova Scotia?
Yes. The New Brunswick and Nova Scotia Complete Solar Install Package is 26 lamacoids (24 plates plus 2 logo lamacoids, 406.5 in² or about 2623 cm² in total) for $325 + HST, with shipping separate ($30 flat). Plates are white text on red, 1.6 mm premium material, with mounting holes and 3M #9502 adhesive. Wording is prepared from your system details and you approve a proof before anything is engraved. We make labels. You stay responsible for what your inspector and utility require, and we don't certify or inspect installations.
Also called lamicoid labels, lamacoid tags, solar placards or legend plates. We make them all.
